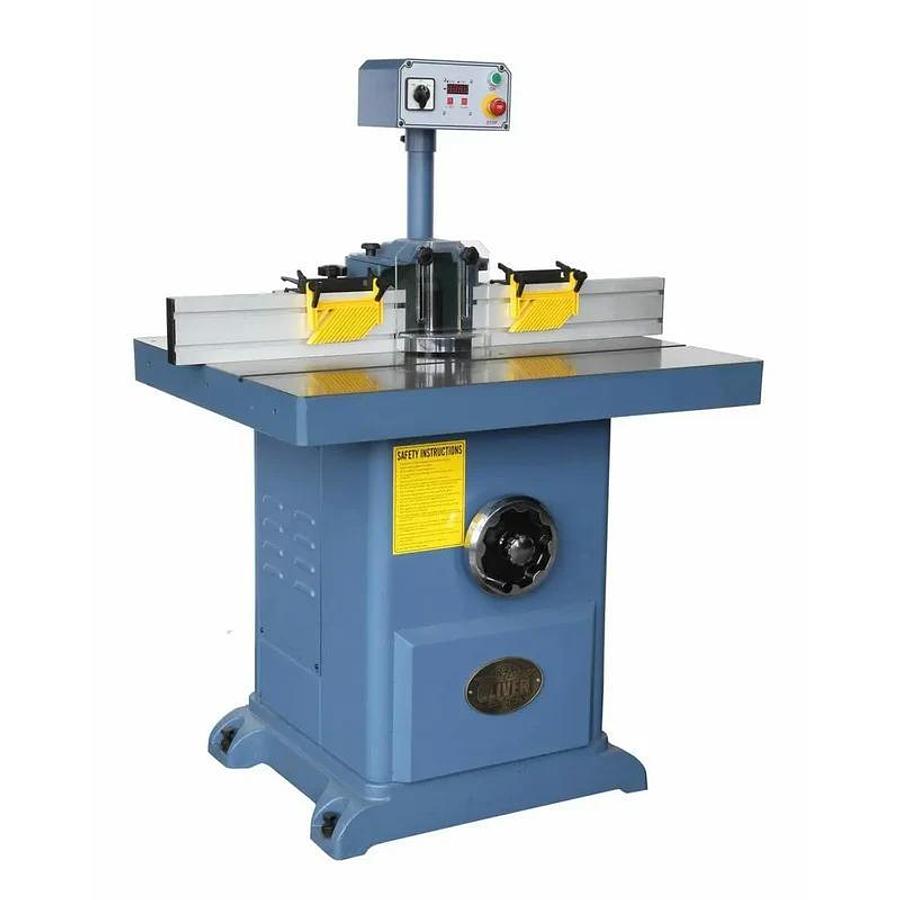

Oliver Machinery Shaper - 4705

Elevate your shaping capabilities with the Oliver Machinery Shaper - 4705. This professional-grade workhorse combines robust construction, exceptional versatility, and user-friendly features, making it ideal for woodworkers of all levels who demand precision and performance.

Engineered for Efficiency:

• Uncompromising Power: The powerful 5HP TEFC motor effortlessly tackles hardwoods and intricate shapes, ensuring smooth cuts and consistent performance throughout your project.

• Large Cast Iron Table: The precision-ground, large cast iron table (36" x 24") provides a stable and expansive work surface for handling projects of various sizes.

• Interchangeable Spindles: Choose from the included 3/4" or 1-1/4" spindles to perfectly match your project requirements. Router bit collets are also available for added versatility.

• Belt Changes Made Easy: The unique tensioner system allows for quick and convenient belt changes, minimizing downtime and maximizing efficiency.

• Poly V-Belt Drive: Experience smoother operation and reduced vibration with the reliable Poly V-belt drive system.

• Spindle Reverses for More Options: Gain added control and tackle intricate cuts with the reversible spindle functionality.

• Three Spindle Speeds: Adapt to various materials and shaping tasks with three distinct spindle speeds (2,200, 4,400, and 7,000 RPM).

• Four Inches of Spindle Travel: Enjoy increased flexibility and handle a wider range of shaping applications with the generous 4" spindle travel.

• Starting Pin Included: Create irregular shapes with ease and accuracy thanks to the included starting pin.

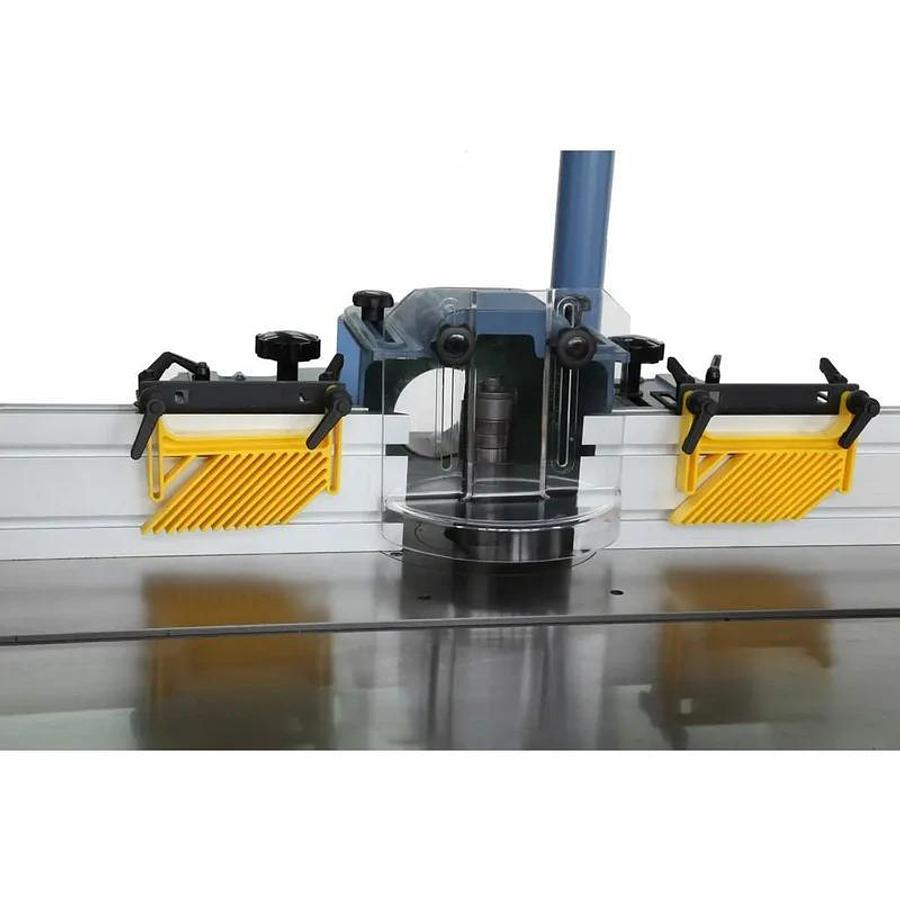

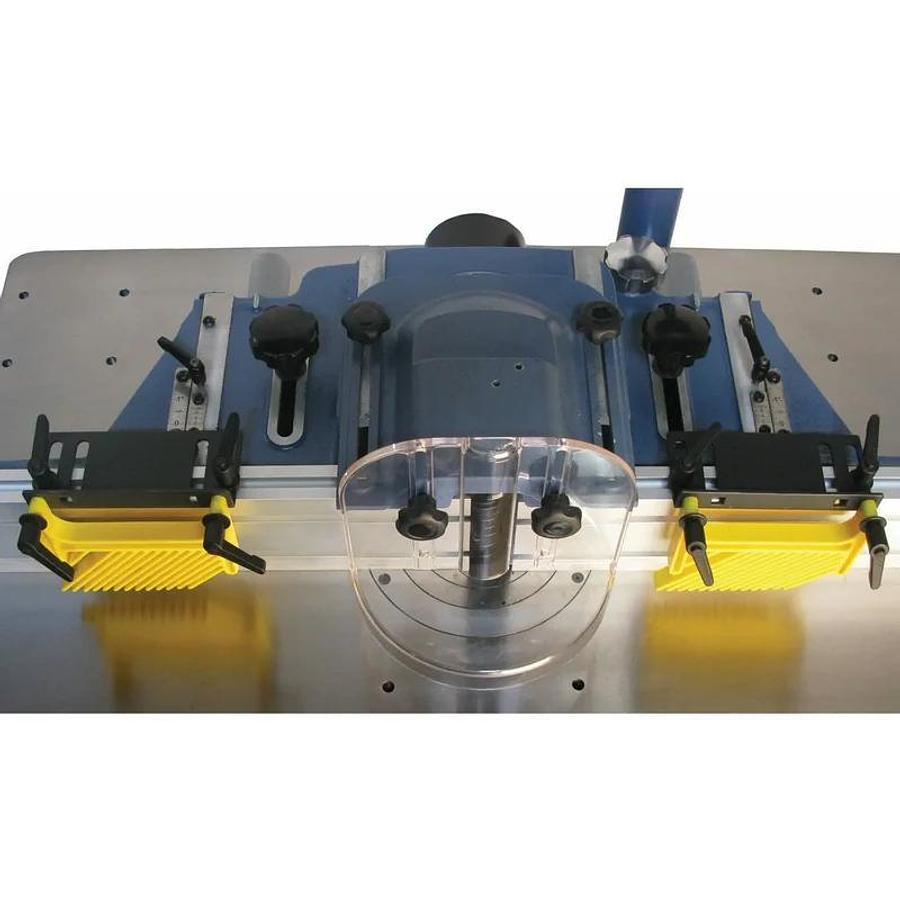

• Independent Fence with Micro Adjustments: Achieve precise control and consistent results with the independent fence featuring micro adjustments.

• Adjustable Hold Downs: Enhance safety and ensure secure workpiece positioning with the adjustable hold downs.

• Extra Large Hand Wheel: Effortlessly adjust table height for optimal cutting positions with the convenient extra large hand wheel.

• Miter Gauge Included: Perform accurate angled cuts with the included miter gauge.

• Digital Readout (DRO): (Optional) Gain ultimate precision with the optional DRO displaying spindle height for unmatched control and repeatability.

• Magnetic Controls: Benefit from enhanced safety and ease of use with the magnetic controls.

Ideal for:

• Professional Woodworkers: Craft intricate shapes and details with confidence and precision, tackling even the most demanding projects.

• Cabinetmakers and Furniture Builders: Create high-quality furniture components with flawless shaping results.

• Serious Hobbyists: Elevate your woodworking skills and projects with the power and versatility of a professional shaper.

• Woodworking Schools and Shops: Provide students with the tools and experience necessary to master shaping techniques.

Features

• Massive cast iron precision ground table provides a solid work surface.
• Table features pre-drilled and threaded holes for power feeder.
• Cast iron base provides a steady platform.
• Table features pre-drilled and threaded holes for optional power feeder.

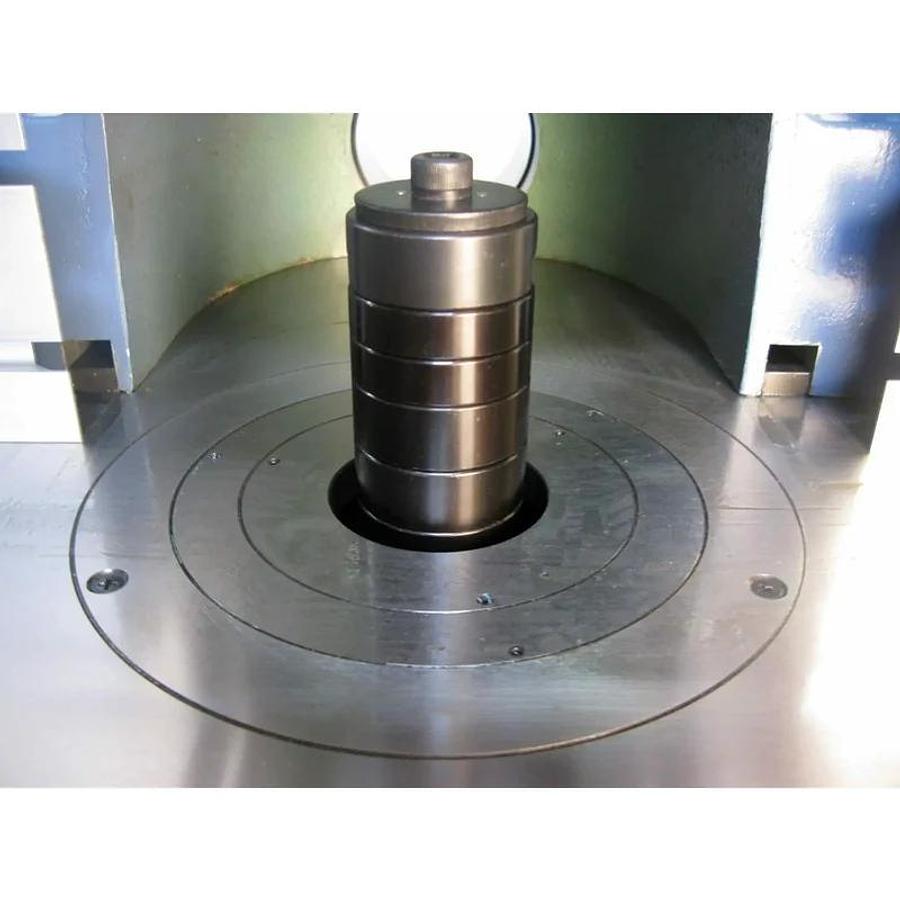

• 3/4” and 1-1/4” interchangeable spindles are included for added versatility.
• Three spindle speeds allow more choices to produce a better finish.
• Reversing spindle gives more options for each set-up.
• Innovative dovetail design accurately raises and lowers the spindle.
• Fence is independent and features micro adjustments for quick set-up.

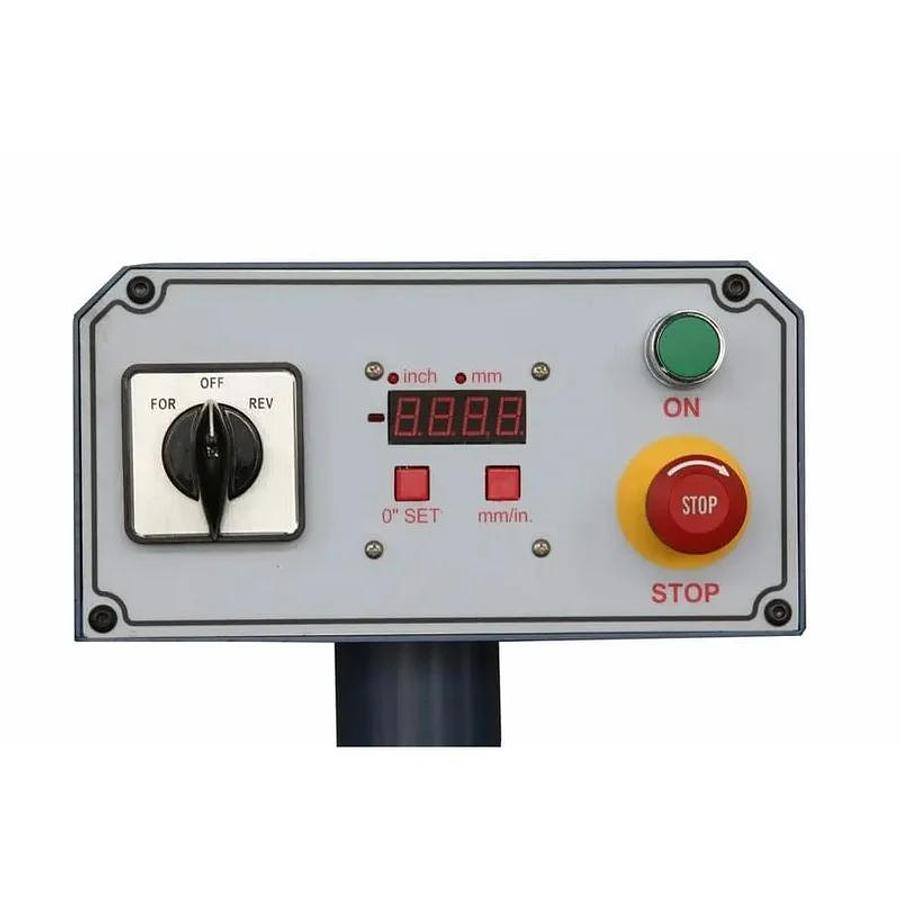

• Top mounted control panel includes a digital readout for spindle height.
• Large hand wheel for quick spindle height adjustment.
• Miter gauge included.
• Magnetic controls with emergency off switch for safer operation.

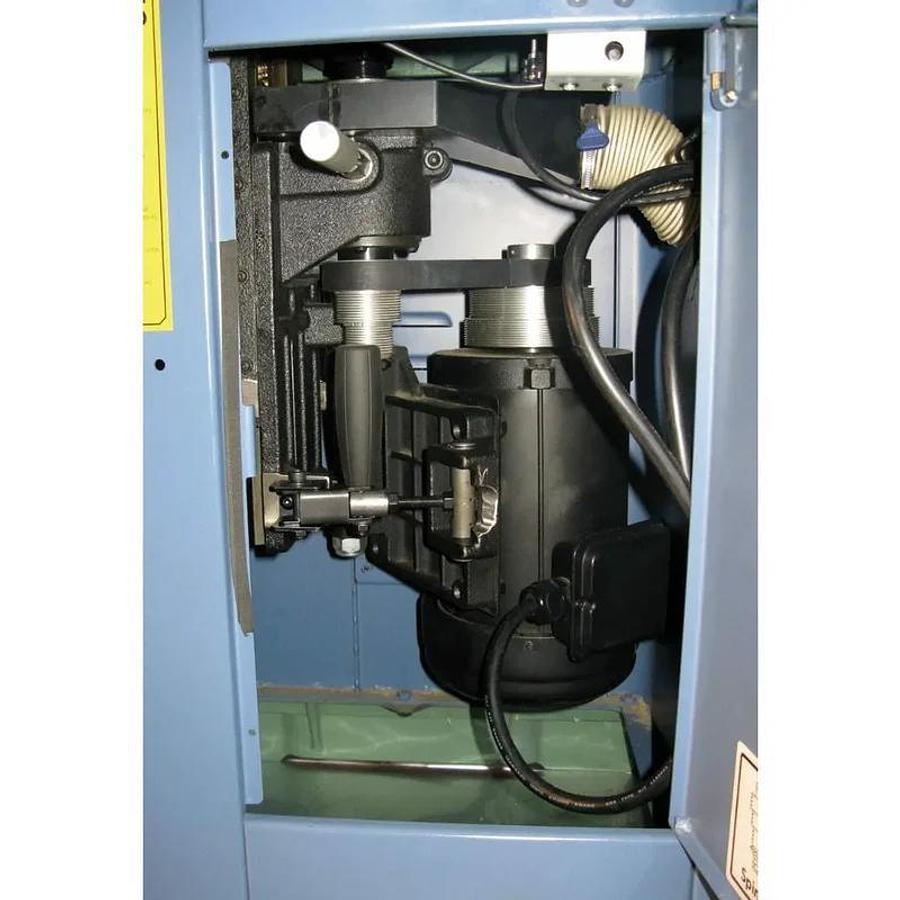

• Powerful TEFC motor available in single or three-phase.

Specifications

Model Number 4705

Stock No. (5HP, 1Ph) 4705.001

Stock No. (7.5HP, 3Ph) 4705.002

Spindle Speeds 5,000, 7,000, 10,000 RPM

Maximum Tool Diameter 7” Below Table, 8” Above Table

Spindle Diameter: 1-1/4” and 3/4” Interchangeable

Verticle Spindle Travel: 4"

Spindle Direction: Reversible

Table Height 36-1/2”

T-Slot: 3/4” x 3/8”

Dust Port Diameter 4”

Minimum CFM: 800

Footprint 28-1/2”L x 24-3/4”W

Table Dimensions 39”L x 31-1/2”W

Motor 1Ph 5HP, 220V only (18 Amp)

Motor 3Ph 7.5HP, 220/440V*, Prewired 220V (16.8/8.4 Amp)

Net Weight 660 lbs.

Gross Weight 800 lbs.
