Castaly Auto Slide Shaper, End Tenoner / Match, Cope, Fingerjoint, Miter Cut, Two Tables, Pneumatic Holddowns, (2) 5HP, 3PH Motors

Castaly Auto Slide Shaper, End Tenoner / Match, Cope, Fingerjoint, Miter Cut, Two Tables, Pneumatic Holddowns, (2) 5HP, 3PH Motors

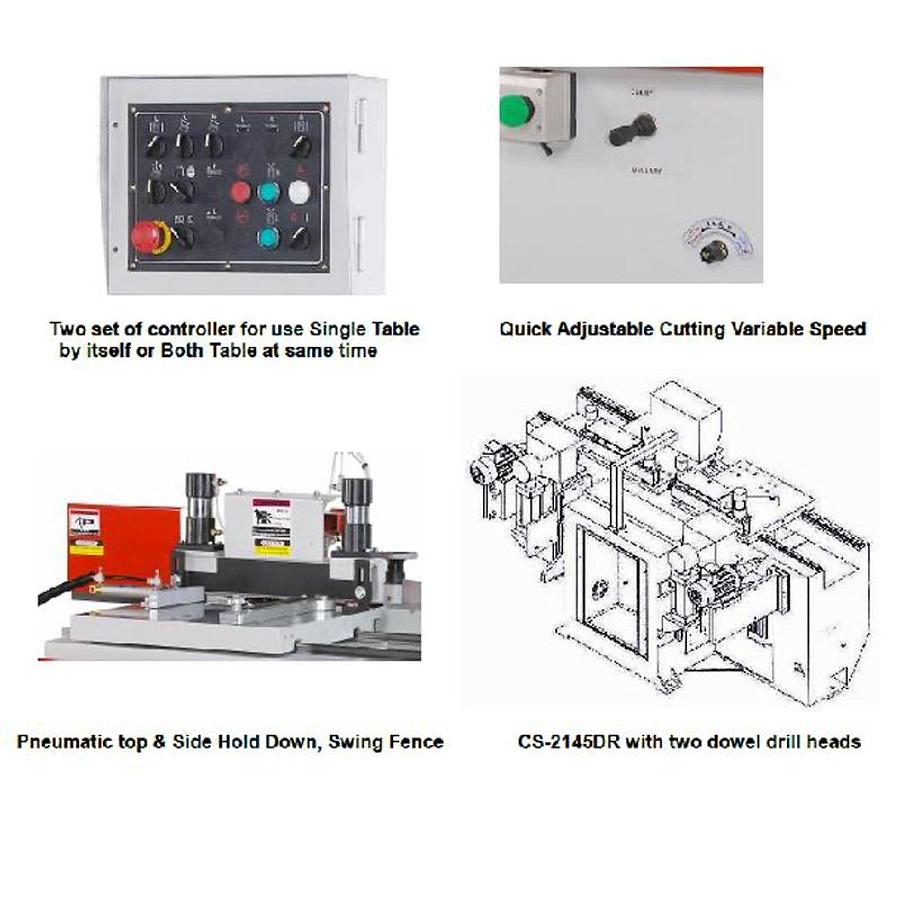

Features:

• Fully automatic cycle function, just place the material against the stops, machine will automatic clamp, move in for shaping, come out and release the hold down.

• Fast, safe and labor saving.

• The 6" high stackable spindle by pneumatic up & down with 3 different stops are easily and accurately setup for each cutter position.

• Table moves from right to left by variable speed pneumatic-hydraulic power to achieve the full cutting power.

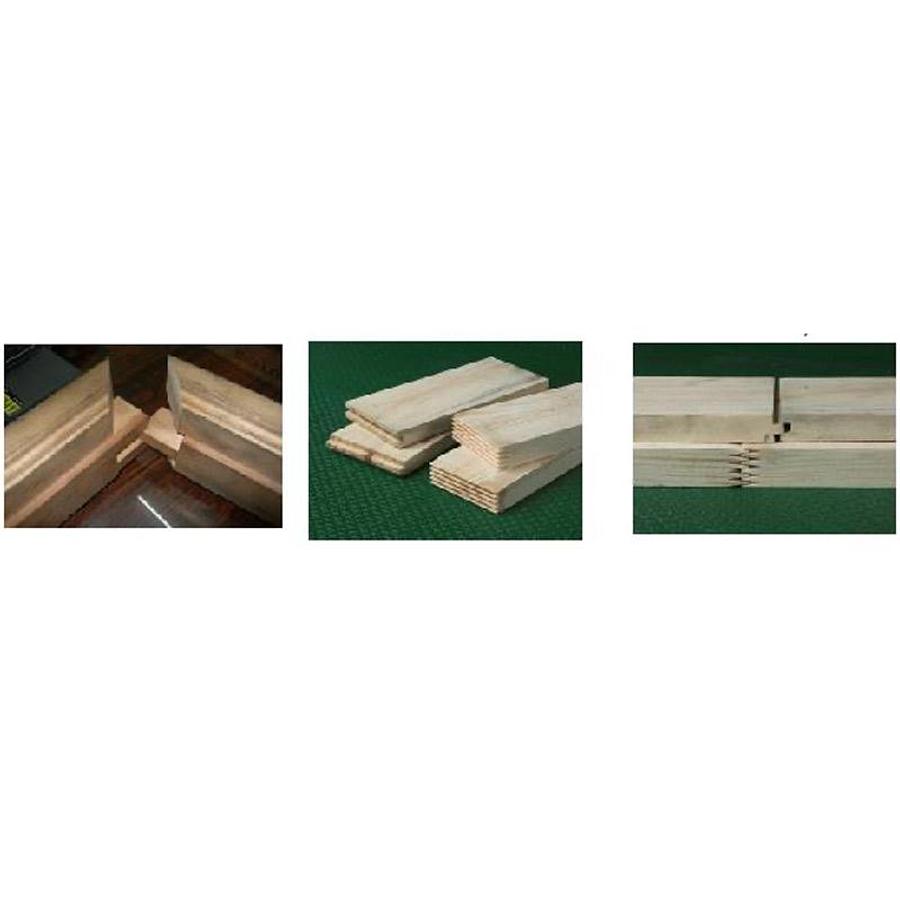

• Twin table moves in and out separately for tongue and groove, end match application.

• Twin heavy-duty pneumatic pistons hold down the workpieces tightly to the table during the cutting process.

• Rigid construction on the heavy sheet metal frame, case iron table & base for durability usage.

• Heavy duty industrial motor is suitable for heavy duty cutting under full load.

• Linear guide rails and bearings let the operator moving the table smoothly.

• Cast iron fence locks in the table groove to finish 45-degree cut easily.

Specification:

SPECIFICATIONS CS-2145M

Max. Cutting Length Unlimited Max. Cutting Width (45 degree) 9" Max. Cutting Width (90 Degree) 11" Max. Cutter Diameter 6" Dia Spindle Diameter 1-1/4" Spindle Length 7" (Stackable) Spindle Speed 9000 RPM Main Motor 5HP x 2 Dust Hood 4" x 2 Net Weight 2800 LBS
