3 Wheel Variable Speed Power Feeder - DC30

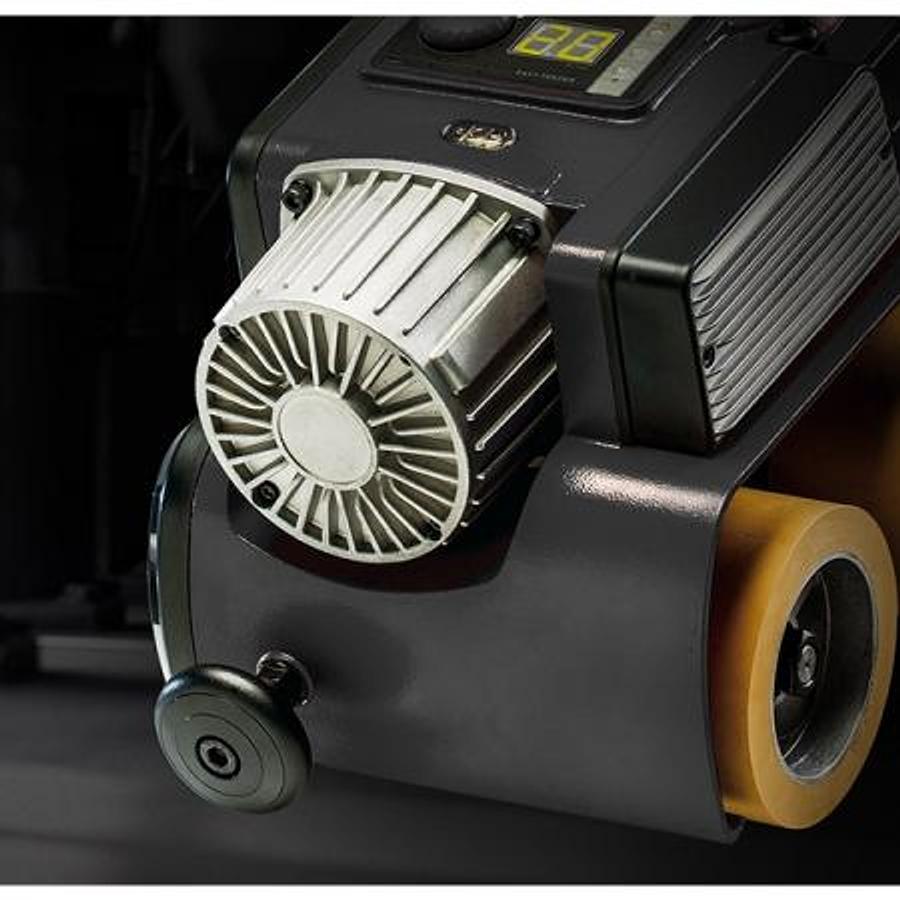

• 2/3 HP DC Brushless Servo Motor with electronic speed display
• SG13 heavy duty universal stand for fast setup
• (3) rubber feed rollers
• Variable speed 2-22 M/min (7-72 FPM)
• Forward/reverse feed

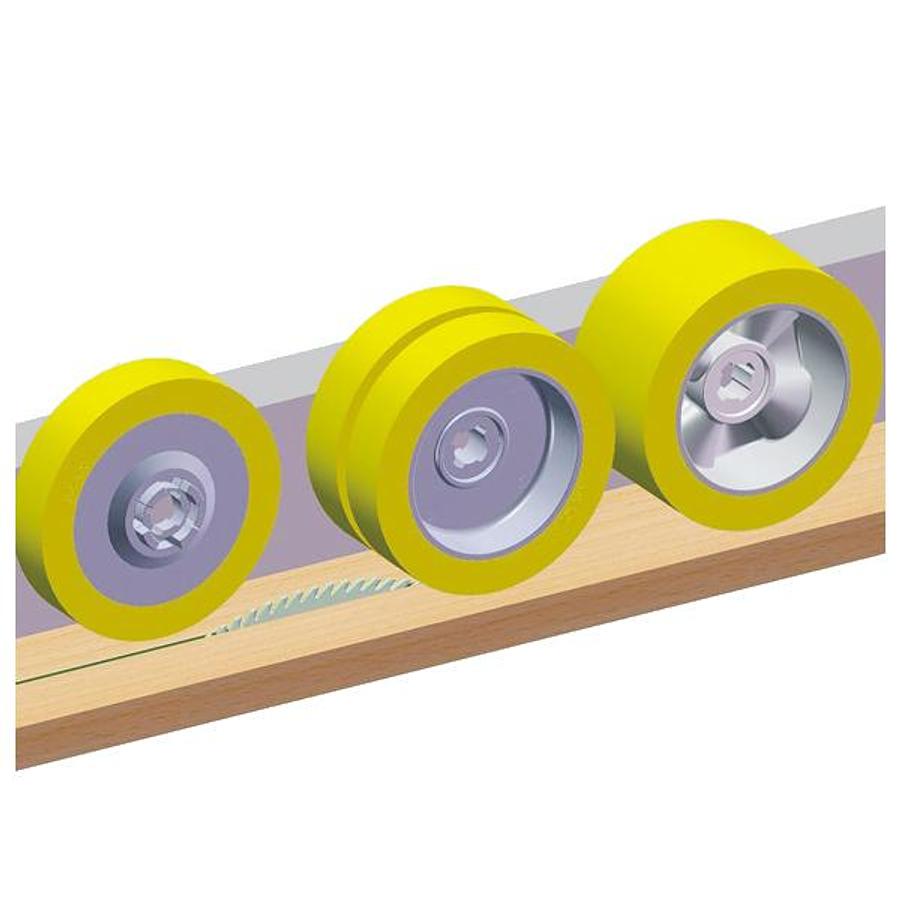

• Optional Dual Rollers for saw or cutter clearance

Roller Size

4.72″ x 2.36″ (Standard)

4.72″ x 1″ (Optional)

Φ120 x 60 mm (Standard)

Φ120 x 25 mm (Optional)

Rollers

3

3

Feeding Speed

7-72 FPM

2-22 m/min

Horsepower

2/3 HP

500W

Packing Size: Body

23″ × 12 ¾” × 12″

588 x 326 x 306 mm

Packing Size: Stand

30-3/8″ x 12-5/8″ x 11 ½”

770 x 320 x 290 mm

Machine Weight

51 + 66 lbs = 117 lbs total

23 + 30 kgs = 53 kgs total

Shipping Weight

55 + 72 lbs = 127 lbs total

25 + 32 kgs = 57 kgs total
