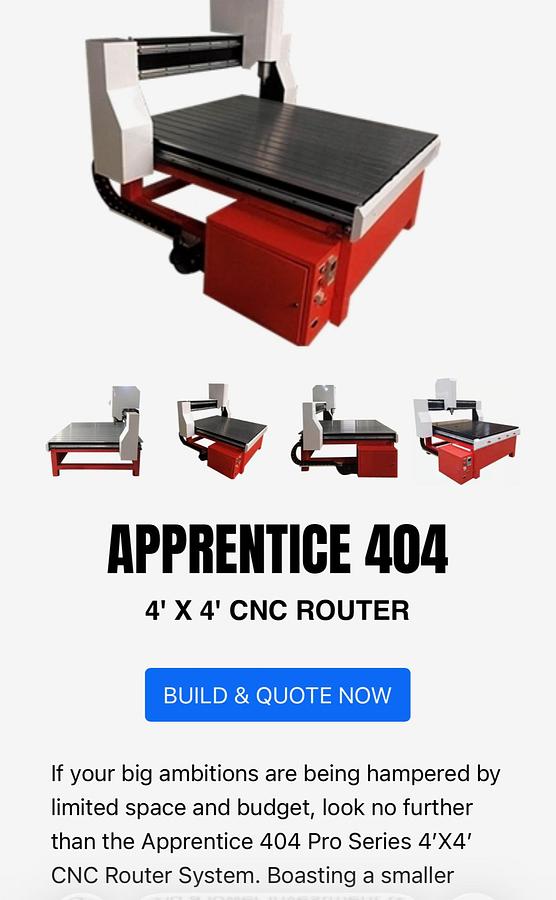

Industrial Apprentice 404 CNC Router with Water Cooled Spindle, 230V, 3PH, Vacuum Pump, Rotary Phase Converter Included

Industrial Apprentice 404 CNC Router with Water Cooled Spindle, 230V, 3PH, Vacuum Pump, Rotary Phase Converter Included

Specification Sheet

Router Features Specifications

Table Size 52" x 52"

X,Y,Z Working Area 48" x 48" x 12"

X,Y,Z, Traveling Position Accuracy +/-.002

Frame Structure Welded Steel

X,Y Drive Primary Gear With Micro Precision R & P

Z Drive Precision Ball Screw

Rapid Speed 0-900 IPM

Spindle High Frequency Liquid Cooled Motor

Working Mode Variable to 24000rpm

Working Voltage AC220V

Command G Code Interface

PCXY Working Tolerance < 0.002

Packing Size 79" x 72" x 74"

Net Weight 1600 lbs
