Opti-Sand L200 Sealer/Denibber Sander

Opti-Sand L200 Sealer/Denibber Sander

$12,000 (USD)

orCall 920-452-4494

Description

As taken from service, machine from a small shop with very low hours of use.

1HP motor drives each horizontal arbor

1/2HP vertical spindle motor

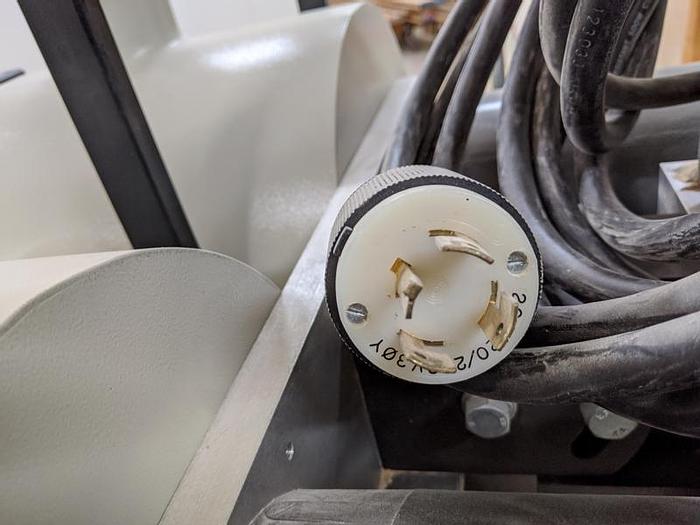

230V

3Ph

(2) top heads

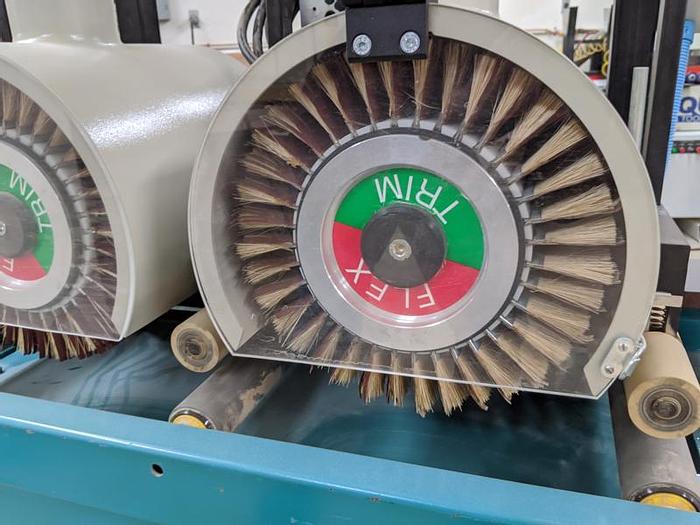

Uses standard abrasive heads or cored brush loadings (one set included)

Heads counter rotate and are mounted on a common plate and side assembly

11-3/4" material width capacity

4" material height capacity

18" min. material length

Sanding spindle diameter 1.963" (50mm)

Horizontal spindle plate tilts downward up to 15"

Variable 100 - 1200 RPM arbor rotation speed

0" - 4" max. part height adjustment via locking hand wheels

57" overall length includes 2-10" long idle roller conveyors

Feed bed with rubber rollers, powered by a worm gear reducer and 0.33HP AC motor drives. Variable speed 10-100FPM.

(3) full width overhead soft rubber pressure rollers on common bar to ensure non-slip movement. This bar is fastened at two points and adjusts up/down by hand crank.

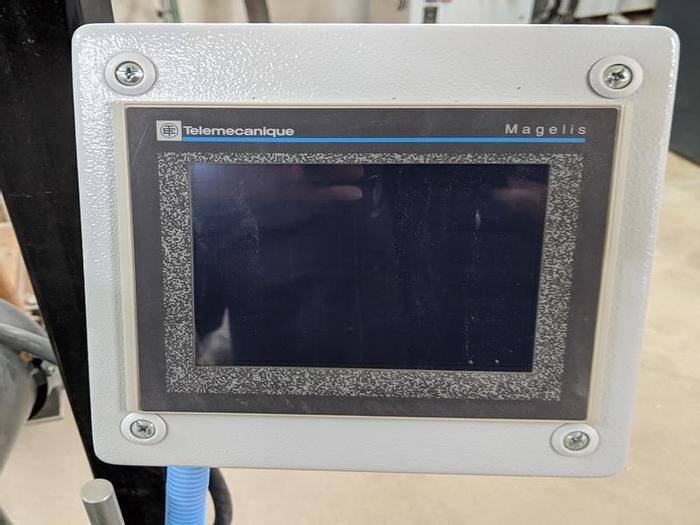

Includes: centralized control panel with digital displays and touch screen controls for spindle speed and feed rate, (2) 4" dia. dust ports, min 700 CFM dust collection required.

Specifications

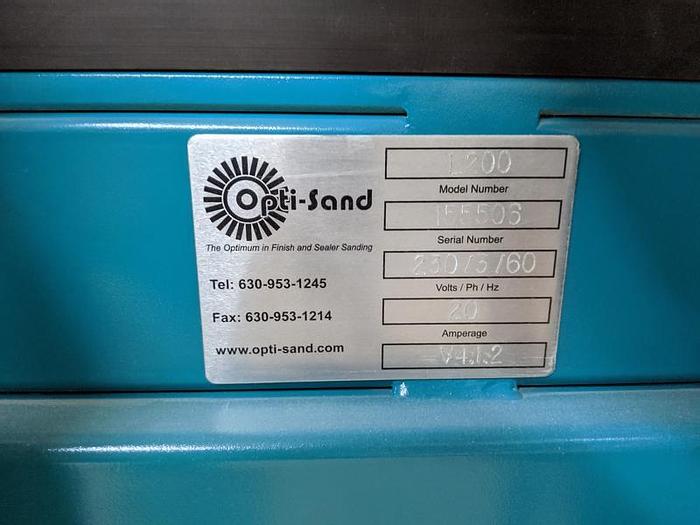

ManufacturerOpti-Sand
ModelL200 Sealer/Denibber Sander
ConditionUsed
Serial Number155506
Stock NumberN-3-044
