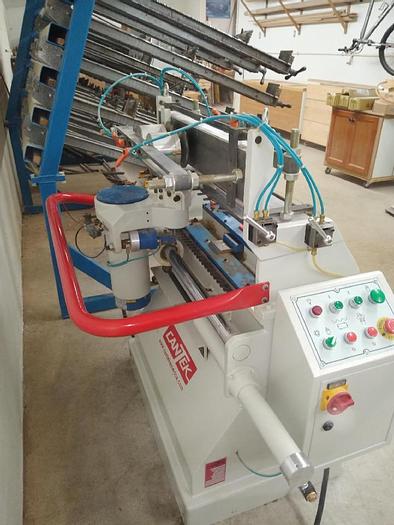

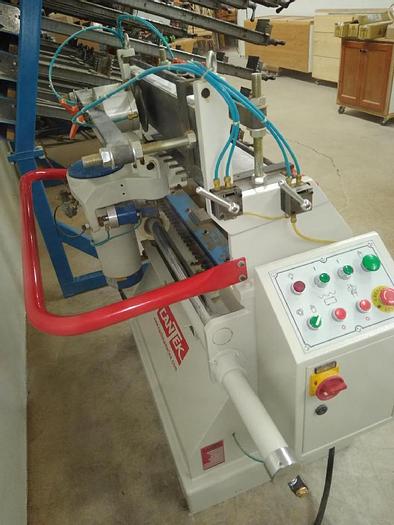

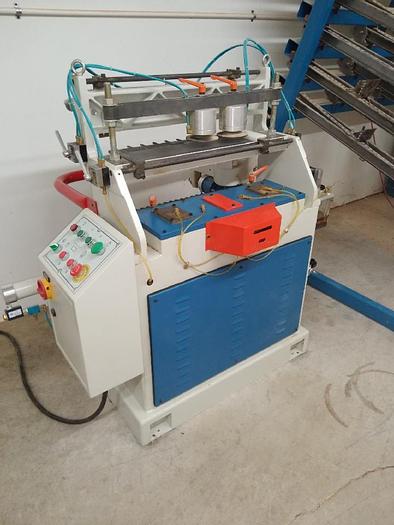

Cantek JDT75 Automatic Dovetail Machine

As taken from service

2HP spindle motor

2HP feed motor

230/460V

3Ph

1" fixed pitch

21,500 RPM spindle speed

0.472" spindle diameter shank

16, 22, 31 cycles/min feed speed

Working length: 7.87" - 59"

Working width: 2.36" - 16.93"

Vertical material thickness 0.275" - 2.36"

Horizontal material thickness 0.394" - 1.18"

Independent adjustment of both the tenon and mortise depth for precise fitting of dovetail joints

Dust hood for milling cutter

Safety rail in front of spindle motor

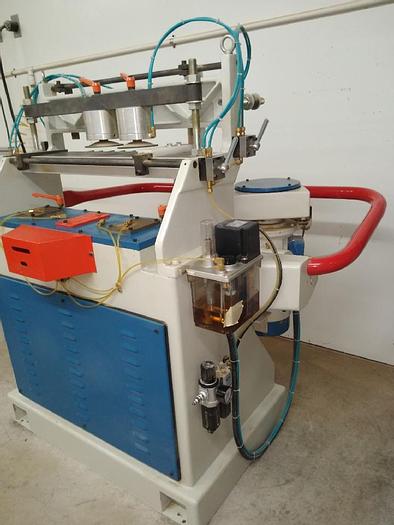

Automatic lubrication system to spindle stroke

High-quality pneumatics for smooth feeding, resulting in quality cutting

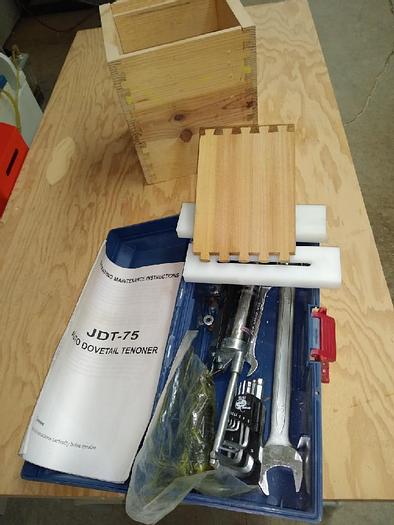

Includes set of bits, manual and tool kit
