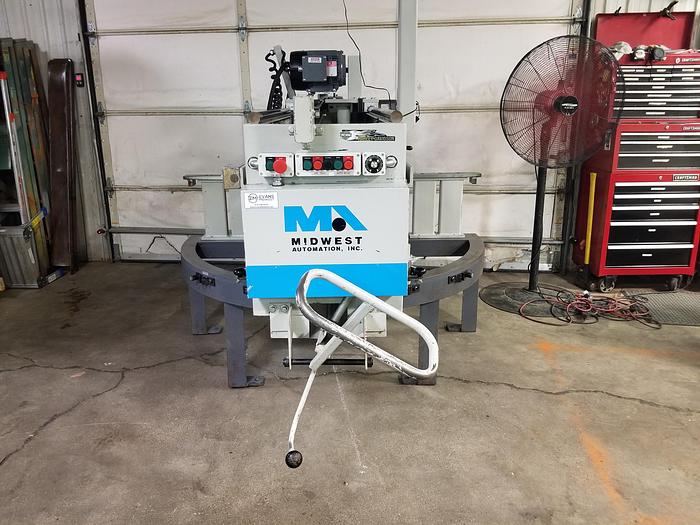

Midwest Automation CS 5230 Countertop Saw, 5HP, 230V, 3 Phase, 1995

Midwest Automation CS 5230 Countertop Saw, 5HP, 230V, 3 Phase, 1995

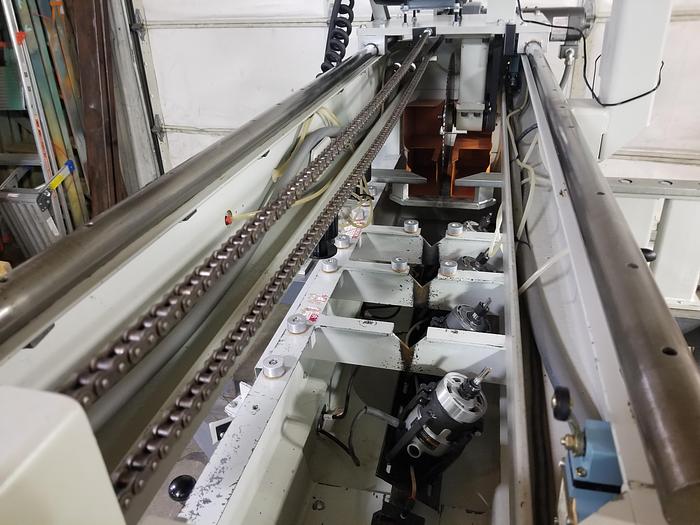

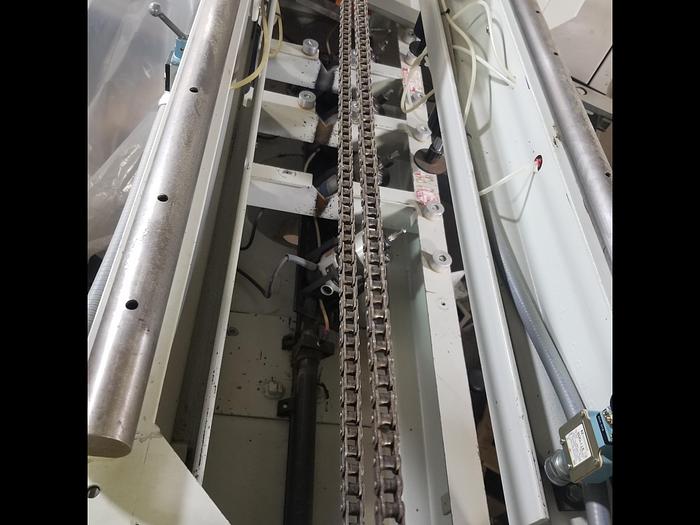

Cleaned and checked, rails, chain lubed, new control transformer for travel

Mfg. 1995

5HP, 230/460V, 3Ph

• For cutting off or mitering post formed and/or coved tops.

• 5 HP – 3,400 RPM main motor, 0.5 HP drive motor

• Variable feed speed 0 – 45 FPM with 45 FPM fixed return speed

• 16″ blade dia. cap., 5-5/8″ depth of cut with build-down;

• 3/4″ max. build-down and 4-7/8″ max. back splash height

• 42″ cross cut cap. at 90°

• 38″ at 22-1/2°, 30″ cut at 45°

• Fixed miter positions for 90°, 45°, 22-1/2°

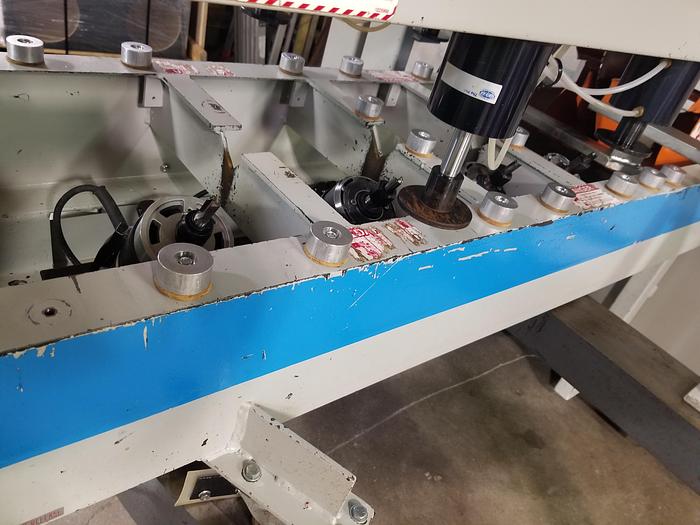

• Equipped with: (4) 1.5 HP – 23,000 RPM router motors for routing the draw bolt mortises

• (4) pneumatic holddowns, standard fence

• (3) dust collection hook ups

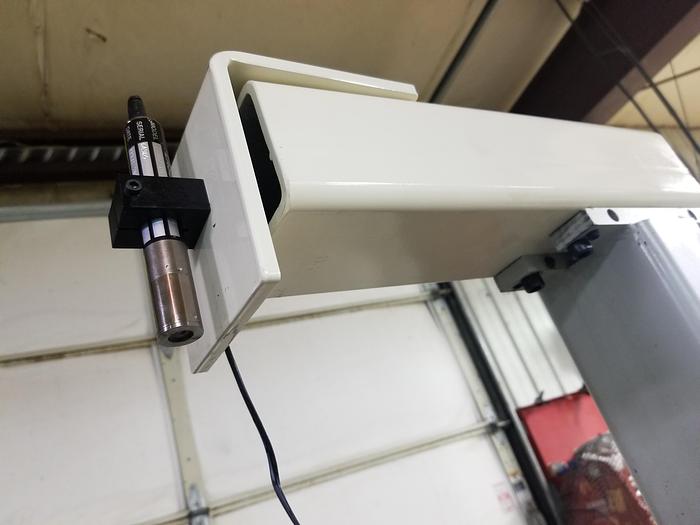

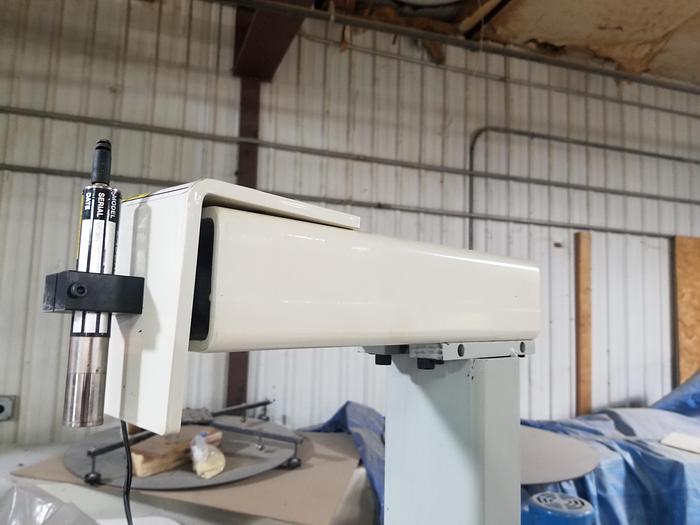

• Laser mounting bracket and laser

• 220V, 60 Cy, 3 Ph

• Dimensions: 102″ L  x  78″ W  x  75″ H

• Weight: 2,000 Lbs (estimate)
